Overview

Basic Info.

Model NO.	JNTGL-0079
Motive Force	Gravity
Style	Drum
Performance	Efficient Filtration
Material	Carbon Steel, Stain Steel, FRP
Origin	China Shandong
HS Code	8421219990

Product Description

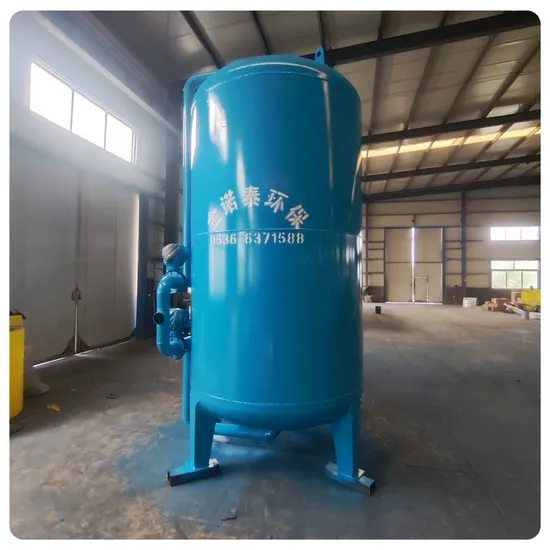

Activated Carbon Quartz Sand Automatic Mechanical Sand Filter

Multi-media filterMulti media filter is a water treatment equipment that uses a combination of multiple filtering media for deep purification. It efficiently removes suspended solids, colloids, particulate impurities, and some organic matter in water through physical interception and adsorption. The following are its core points:
Structure and Working Principle
1, Hierarchical filtering mechanism
The filter material is laid in layers according to density and particle size (usually anthracite → quartz sand → activated carbon or magnetite from top to bottom). When water flows through from top to bottom:
The upper layer of large particle filter material (such as anthracite) is used for coarse filtration of large suspended solids;
Intermediate quartz sand intercepts medium particles;
The lower layer of fine filter material (such as activated carbon) adsorbs small impurities and organic matter.
2, Backwash regeneration
When the pressure difference exceeds the set value (such as 0.05MPa), backwashing is initiated: water flows from bottom to top to flush the filter layer, remove trapped impurities, and restore filtration capacity.Application scenarios

Industrial water treatment	circulating cooling water turbidity removal, boiler feedwater pretreatment;
Drinking water purification	pre filtration for municipal water supply and purified water preparation;
Special fields	Ultra pure water pretreatment in the electronics industry, anti clogging in agricultural irrigation

Core filter material and combination

Filter material type	Characteristics and functions	Common combination forms
Anthracite	Low density, strong pollutant interception ability, coarse filtration of suspended solids	Anthracite+quartz sand (double-layer)
Quartz sand	Moderate density, intercepting medium particles	Activated carbon+quartz sand (excluding organic matter)
Activated carbon	adsorbs organic matter, pigments, and odors	manganese sand+quartz sand (excluding iron and manganese)
Magnetite/Garnet	High density fine particles, fine filtering of small impurities	Three layer combination (anthracite+quartz sand+magnetite)

treatment effect

Activated Carbon Quartz Sand Automatic Mechanical Sand Filter

Main products

Activated Carbon Quartz Sand Automatic Mechanical Sand Filter

Underground integrated sewage treatment equipmentDissolved air flotation machineMulti-media filter

MBR integrated sewage treatment equipmentContainer type integrated sewage treatment equipmentIntegrated water purification equipment

Inclined tube sedimentation tankLaboratory sewage treatment equipmentWater purification equipment for waterworks

Shallow air flotation machinemud scraperStacked screw sludge dewatering machine

Mechanical grating machinebelt filter pressMicrofiltration machine

Company Profile

Shandong Jinnuotai Environmental Engineering Co., Ltd.Shandong Jinnuotai Environmental Engineering Co., Ltd. is a comprehensive enterprise that integrates the research and development, production, sales, construction, and service of environmental protection equipment. Our company has a professional and efficient technical team and a strict and effective management system, dedicated to the professional manufacturing of environmental water treatment equipment. The company is located in Zhucheng, known as "China's Dragon City, the hometown of Emperor Shun" Located in the southeast of the Shandong Peninsula, it borders Weifang, the world kite capital, to the north, the coastal city of Qingdao to the east, and the emerging port city of Rizhao to the south.Shandong Jinnuotai Environmental Engineering Co., Ltd., as an environmental protection equipment manufacturer, provides supporting equipment for sewage treatment projects in various fields such as agriculture, petroleum, chemical, papermaking, pharmaceuticals, food, starch, metallurgy, electricity, coal, hospitals, industrial and mining enterprises, domestic sewage, and municipal sewage in China. Becoming a rising star in the domestic environmental protection industry in recent years. Our company has the design and production qualification for environmental protection equipment, and can provide users with comprehensive services such as technical consultation, process design, site layout, equipment installation and commissioning. In the face of fierce competition in the market, our company adheres to the business philosophy of "seeking development through technology and survival through quality", continuously strengthening the development and innovation of new products, and expanding the market for our products.
