3310 Series PP Melt

Overview
FAQ

Overview

Basic Info.

Model NO.	HC3310FPT40H
Type	PP/Nylon Filter
Filter Connector	DOE, 222, 226, Flat, Fin
Filtration Grade	PRE Filter
Activated Carbon Filter Type	Melt Blown
Micron Rating	1um~100um
Inner Core	None, PP
Transport Package	251010cm
Specification	10", 20", 30′′, 40"
Trademark	AIKEFI
Origin	China
HS Code	8421999000
Production Capacity	50000PCS/Month

Product Description

Henan AIKEFI mainly produces PP and nylon melt-blown filter element, which is formed by hot-melt entanglement of polypropylene superfine fibers, which is not suitable for any chemical adhesive. The fibers are randomly self-adhered in space to form a three-dimensional microporous structure, which integrates surface, deep layer and coarse filtration. PP melt-blown filter element forms a deep filtration structure with high filtration accuracy and dirt-holding capacity, small pressure difference, dense outside and gradually changing pore size inside in the diameter direction of the filter element, which has strong dirt-holding capacity, can effectively remove impurities such as suspended solids, particles and rust in the fluid, and has high filtration efficiency and high filtration efficiency.
Feature:
· High retention structure ,particle removal rating from 0.1 to 50 Microns.· 100% polypropylene components provide broad chemical compatibility ,suitable for use in a variety of fluids.· With high filtration accuracy, it can ensure the minimum pressure loss and promote large and stable flow. · Ultra-large pollution capacity and Longer service life,
Applications:
* Pre-filter of drinking water system
* Pre-filter of R.O system and others water system
* Oil removal industry
* Food and beverages industry
* Photographic industry
* Pharmacy industry
* Electroplating, etching and image development processes in PCB industry
* Filtration of electroplating fluid in conventional electroplating industry
* Trap filter of DI water filtration system for industry
Product details
Product Parameters Ordering Information

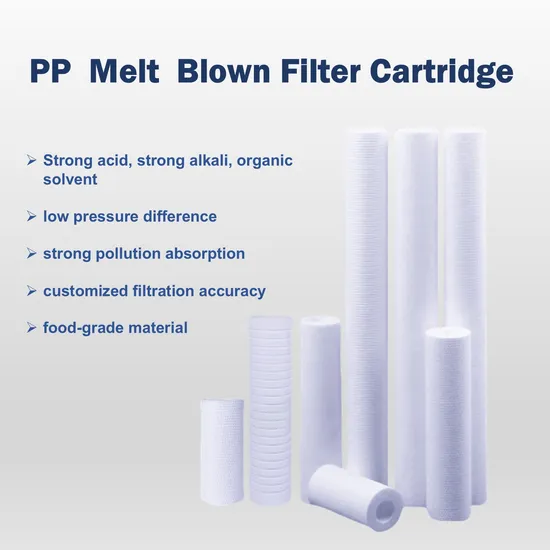

3310 Series PP Melt-Blown Filter Element

1. Q: When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us from your email,so that we will regard your inquiry priority.2. Q: Do you Accept OEM service? A: Yes! we can manufacture according to your requirement. 3. Q: What kinds of filter do you produce? A: High flow filter cartridge, wire water filter, pleated filter cartridge, security filter equipment, RO Membrane Element and RO Equipment, and so on. You can turn to us for any kinds of filters and filter related parts.4. Q: How do you pack products? A: Standard exporting carton, wooden, pallet, customized.5. Q: how long it your lead time? A: Air shipment orders can be ready in 5 working days, sea shipment orders can be ready in 10 working days.6. Q: What is your terms of delivery? A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.7:Q: How should I place an order? A:Please kindly click" send inquiry" or "contact supplier", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.

Dimension	Outer Diameter	69mm
	Inner Diameter	11mm ~ 98mm
	Length	5'' 10'' 20'' 30'' 40''
Material of constructions	Media	PP/Nylon
	Support	PP
	cage/Core/Endcap	DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin
	Sealing	Silicone EPDM NBR E-FKM
Performance	Max. Operating temperature	80ºC
Performance	Max. Operating DP	4 bar@ 21ºC, 2.4 bar@ 80ºC

odel	Filtration Rating	End Cap Type	Length	Seal Maerial
PMB	0050=0.5μm 0100=1.0μm 0300=3.0μm 0500=5.0μm 1000=10μm 1500=15μm 2000=20μm 2500=25μm 3000=30μm 4000=40μm 6000=60μm 7000=70μm	TC=222/Flat SC=226/Flat TF=222/Fin SF=226/Fin D=DOE	05=5" 10=10" 20=20" 30=30" 40=40"	E=EPDM S=Silicone V=V iton P=PTFE
